Sheet N ° 23

How to test hydraulic cylinders

Hydraulic training

  • Formation hydraulique: Explication simple comprise de tous. Retrouver les cours associés aux...

    55,00€ inc. tax 52,13€ excl. tax

    Details

The role of the jacks is to transform hydraulic energy into linear force.

There are 2 modes of action:

     - Single acting cylinders.

     - Double acting cylinders.



 1- Single-acting cylinders

The single-acting cylinder has only one oil supply needed to extend it. The annular chamber (small chamber) is usually vented by a breather. The cylinder returns assisted by the load or a spring.

  • 55,00€ inc. tax 52,13€ excl. tax

    Details



Single acting cylinder: very used. The jack retracts with the help of its load. (Agricultural, forklift, industry ...)

Verin simple effet 1
  • Promo

    550,00€ 467,50€ inc. tax
    521,33€  443,13€ excl. tax

    Details





Single-acting cylinder with spring return. (Brake locking ...)

Verin simple effet a rappel par ressort 1
  • Promo

    550,00€ 467,50€ inc. tax
    521,33€  443,13€ excl. tax

    Details




Plunger cylinder. The stem is the size of the barrel. The cylinder retracts with the help of the load. The advantage of this type of cylinder is the strength of the rod. It has better resistance to buckling. (Agriculture, industry ...)

Symbole verin plongeur 1
  • Promo

    55,00€ 49,50€ inc. tax
    52,13€  46,92€ excl. tax

    Details



Telescopic cylinder. The cylinder retracts with the help of the load. The advantage is the length deployed by the rod. (Mobile, crane, tipper truck, etc.)

Verins telescopique simple effet 1

  • 55,00€ inc. tax 52,13€ excl. tax

    Details

Note  : Single acting cylinders can have 2 pipes. The second hose is connected in place of the breather and returns to the tank. This collects any leaks from the piston. It serves as drainage.

Checking the internal tightness of a single-acting cylinder is fairly easy, it starts to leak at the vent.

If the cylinder has a drain hose, simply disconnect it and check for leaks.



 2- Double-acting cylinders

Here are the most common double-acting cylinders:



A single rod (certainly the most common).

Symbole verin double effet 1






Double rod (used in particular for steering, the advantage is to have a section ratio of 1).

Verin double effet double tige 1




Telescopic (used in mobile: crane, tipper, etc.)

Verins telescopique double effet 1




Double-acting cylinder with end-of-stroke damping: machining that slows down the cylinder when it reaches the end of its stroke. This damping can be adjustable, we will find arrows at the piston.

Verin double effet avec amortisseur fin de course 2




Rotary cylinder (Used mainly in industry or the marine industry: closing valves, orienting a part, etc.) This type of cylinder has a section ratio of 1.

Symbole verin rotatif 1

Rapport de section des verins 1



R = S1 / S2

     A   : Section report.

     S1 : Surface on the bottom side.

     S2  : Rod side surface.



3 - Recall of formulas

To calculate the force of a jack:

P = F / S

P:  Pressure in bars.

F  :  Force in daN or Kg.

S: Section of the piston in cm².

To calculate the speed of a cylinder:

Q = 6 * S * V

      Q:  Flow rate in l / min.

       S: Section of the piston in cm².

       V:  Speed ??of the jack in m / s.



4 -Test a double-acting cylinder

  • Hydraulic hotline

    Hydraulic hotline

    Résoudre vos problèmes hydrauliques rapidement HOTLINE (Réponse rapide) Résoudre...

    1 320,00€ inc. tax 1 100,00€ excl. tax

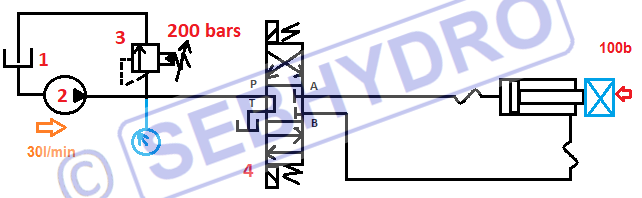

Tester un verin 1

  • 55,00€ inc. tax 52,13€ excl. tax

    Details

When a cylinder partially leaks, the cylinder speed decreases, there is no need to control the cylinder pressure, as long as the cylinder leakage is less than the pump flow, the pressure read on the pressure gauge will be that of the load displacement .

With the cylinder at the stop, the pressure at the pump outlet will always be around 200 bars ( at the ranges near the pressure limiter (item 3)) .

Procedure for checking (for troubleshooting) the internal leak of a cylinder:

     - Position the cylinder in stop with the extended rod or block it mechanically.

     - Disconnect pipe B and plug the other end.

     - Pump running, actuate the right arrow distributor.

     - Check the oil leak at the outlet of pipe B.

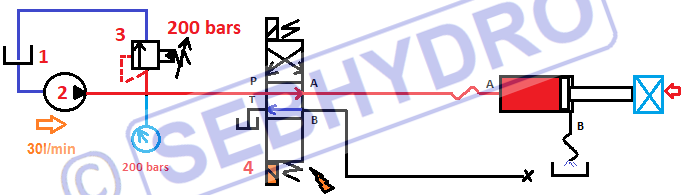

Tester un verin en butee 1

  • 55,00€ inc. tax 52,13€ excl. tax

    Details

To perform this test safely, we must ensure that we do not have a driving load (suspended), and be aware of the risks associated with pressure.

If a leak is observed in the pipe B and it corresponds in volume to the desired loss of speed, the jack is out of service. The change of the seals is necessary.

If no leak is found, the same test must be carried out with the cylinder rod retracted to ensure that the piston is properly sealed.

  • Promotion

    Formation hydraulique de base niveau 1 complète en vidéo webcam enregistrée sur...

    120,00€ 120,00€ inc. tax
    113,74€  113,74€ excl. tax

    Details

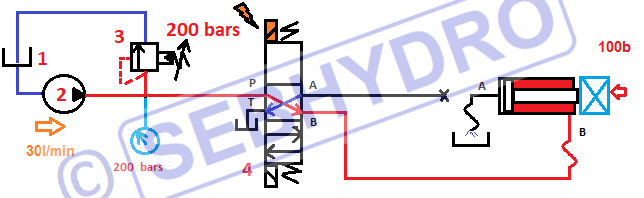

Tester un verin en butee tige rentree


If no leak is found, the cylinder can be considered to be in good condition.

Keep in mind that the leak may be acceptable (very little leakage) with the rod in abutment and more important in an intermediate position (ovalization for example ...)

Another method is to disconnect the load from the cylinder, plug the large chamber and actuate the distributor to retract the cylinder.

  • Expertise: contrôle et réglage des pompes hydrauliquesExpertise pompe La pompe est un élément...

    0,00€ inc. tax 0,00€ excl. tax

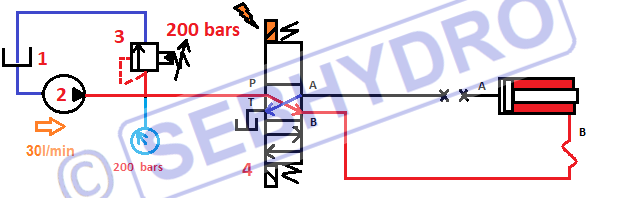

Tester un verin en le bouchonnant


If the cylinder has an internal leak, the oil accumulates in the large chamber and causes the rod to exit through the play of the section ratios.

Be careful with this method, you must not do it in the reverse order (plug the small chamber). In fact, the cylinder section ratio increases the pressure and can make the maneuver very dangerous.

  • 0,00€ inc. tax 0,00€ excl. tax



  • La procédure de contrôle, réglage et dépannage est décrite à l'aide d'un schéma de mini-pelle 1.6T....

    55,00€ inc. tax 52,13€ excl. tax

    Details
