Multimeters have an ammeter function. The ammeter allows current measurements to be taken, however it is necessary to disconnect the electrical circuit to install it in series.

1- Intensity measurement.

By making the analogy with hydraulics, the intensity represents the flow of electrons . To measure this "flow", it is necessary to install a meter in series on the circuit, it is the ammeter.

The intensity of an electric current is expressed in Ampere (A) or milliampere (mA)

Depending on the multimeters used, it is necessary to change the location of the test pin. In all cases, the current to be measured must be estimated in order to calibrate the multimeter in the correct position:

Promo

Habilitation electrique industrielle page 1

55,00€ 35,75€ inc. tax
52,13€ 33,89€ excl. tax

Details

Formation : les bases de l' hydraulique vol 2 (livre + vidéos)

55,00€ inc. tax 52,13€ excl. tax

Approfondir ses connaissances en hydraulique vol 3

55,00€ inc. tax 52,13€ excl. tax

livre contrôle, réglage, dépannage minipelle

La procédure de contrôle, réglage et dépannage est décrite à l'aide d'un schéma de mini-pelle 1.6T....

55,00€ inc. tax 52,13€ excl. tax

Promotion

Test box for 3- and 4-wire sensor

Boîtier test pour le controle des capteurs 2 & 3 fils. Capteur avec connecteur 4 broches -...

99,00€ 89,10€ inc. tax
82,50€ 74,25€ excl. tax

Promotion

box for hydraulic coil test DIN EN 175 301-803-A (HIRSCHMANN GDM-séries)

Boitier test bobine hydraulique DIN EN 175 301-803-A (HIRSCHMANN GDM-séries) Boitier test bobine...

99,00€ 89,10€ inc. tax
82,50€ 74,25€ excl. tax

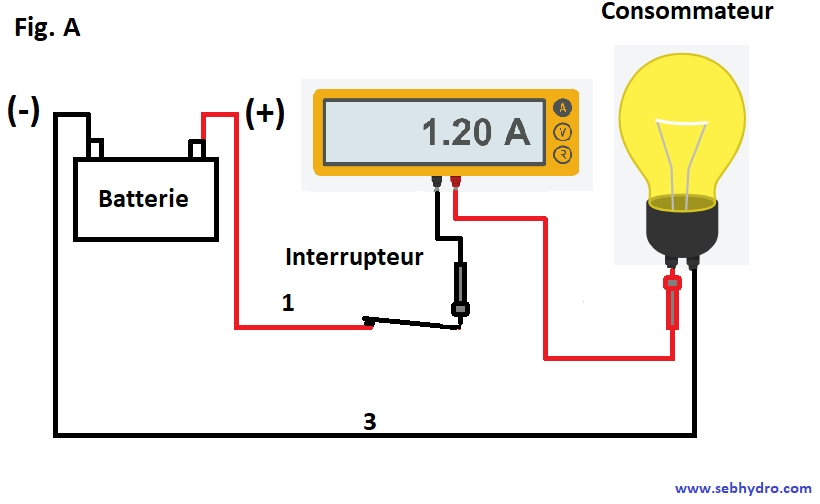

In Fig. A is shown a simple electrical circuit consisting of a battery. The (+) terminal is connected to the switch by wire (1). The wire (2) is removed to install the ammeter. The consumer is connected to the battery ground.

When the switch is closed, the bulb lights up, the value read on the ammeter corresponds to the current entering the “electron flow” consumer.

Expertise: contrôle et réglage des pompes hydrauliquesExpertise pompe La pompe est un élément...

0,00€ inc. tax 0,00€ excl. tax

Promotion

Formations de bases hydrauliques vol 1 3

Formation hydraulique "les bases" vol 1&2

Se former en hydraulique. 40 cours hydrauliques associés à 40 vidéos. Véritable...

110,00€ 99,00€ inc. tax
104,27€ 93,84€ excl. tax

55,00€ inc. tax 52,13€ excl. tax

55,00€ inc. tax 52,13€ excl. tax

Details

In Fig. C, 2 identical consumers are installed in parallel. The ammeter is positioned in 4 places of the electrical circuit.

When the switch is activated, we see that the input current (2.4 A) divides into 2 (1.2 A) because the consumers are identical. The output intensity is equal to that of the input.

If the consumers are different, the intensity divides unevenly (for example: 1 A & 1.4 A). But the output intensity remains equal to that of the input.

Kirchhoff's current law: The sum of the currents (intensity) which enter an electrical node is equal to the sum of the currents which emerge from it.

3- Precaution.

Be careful when using the multimeter as an ammeter, it is imperative to insert it in series on the electrical circuit. Any measurement taken in parallel can cause a short circuit. The ammeter behaves like a shunt, it is protected by a 400 mA or 10 A fuse depending on the rating and the multimeters used.

Immediately after using the multimeter as an ammeter, it is strongly recommended to reconfigure it as a voltmeter and to put the test pin back in the correct position in order to avoid forgetting and to risk a short circuit during the next measurement. .

Note : For measured currents greater than 10 A (eg: starting circuit), it is necessary to use an ammeter clamp. This clamp has the advantage of requiring no opening of the electrical circuit. (Photo below)
